Yealink T4xS & CP Phones - Additional Notes on installing firmware

Summary

When using Yealink phones on a Swyx PBX we recommend to always use the latest released firmware. An overview of the released firmware per version can be found here: Yealink Firmware Overview.

Since SwyxWare 12.10 Yealink provides an exclusive firmware for Swyx, which you can recognize by the OEM number 133 in the third position of the firmware version number (x.x.133.x).

Advantages of this exclusive firmware for Swyx for you as a partner and your customers are

• Integration of exclusive features that are precisely tailored for operation with a SwyxWare
• Faster response from Yealink to correct bugs compared to when using the globally available Yealink firmware and
• the guarantee that changes to the global Yealink firmware are continuously included in the Swyx firmware

Please note that telephones with the firmware produced for Swyx exclusive will only work with a SwyxWare an no other PBX.

This article now describes a procedure to up- or downgrade the firmware of Yealink phones which have been purchased directly from Swyx and are shipped with a x.x.133.x firmware, e.g. to use them with a SwyxWare 11 version.

Information

The following process will guide you through the upgrade between Swyx firmware and the generally available Yealink version, especially if you encounter the following error messages when upgrading the phone firmware with a general Yealink firmware, such as

• 'OEM version different'
• Unlicensed OEM'.

Basically there are two ways to upgrade the FW, depending on the condition of your phone.

Step 1: Check if an OEM license is installed.

• Press the OK button
• Select
  • for T42S/T46S the More and then Phone or
  • on the T48S directly the Phone entry
  • Check if the entry Custom License contains Installed

Step 2: Check which firmware is installed

• Press the OK button
• Note the entry under Firmware
• If no Custom License is installed, but the error 'OEM version different' occurs when trying to install a general firmware, then follow the steps described in solution 1, otherwise follow solution 2 or 3.

Solution 1: no Custom License installed, error 'Unlicensed OEM' visible

Prerequisite:

• Your Yealink phone is connected to the Internet.
• You know the admin password of the phone.
  • If the phone has been used on a SwyxWare before, you can find the Admin Password in the SCC under General Settings / System / Deployment
  • If the phone is not yet in use, the default password is admin.
• Preferably the phones are still connected to a SwyxWare.

Solution

• Perform an upgrade as follows
  • If the firmware of your phone is 66.84.133.3, then update to 66.84.133.11
  • If the firmware of your phone is other than 66.84.133.3, update to 66.84.133.12
• The upgrade can be done directly via your connected SwyxWare via the FIS.
• In the following it is explained how to update the web portal of the phone:
  • Open the Web Portal of the phone
  • Log in as administrator
  • Open Setup and select Automatic Deployment
    In the entry Server-URL for
    • 66.84.133.11 http://autop.yealink.com/133_11.cfg
    • 66.84.133.12 http://autop.yealink.com/133_12.cfg
      one.
    • Press the button Auto Provision Now
    • After the firmware has been successfully installed, you can upgrade the phone to a general Yealink firmware or e.g. connect to a SwyxWare 11.x in a known way.

Solution 2: Custom License is installed, error 'OEM version different' visible when updating to general Yealink firmware

Prerequisite:

• Your Yealink phone is connected to the Internet.
• You know the admin password of the phone.
  • If the phone has been used on a SwyxWare before, you can find the Admin Password in the SCC under General Settings / System / Deployment
  • If the phone is not yet in use, the default password is admin.
• Preferably the phones are still connected to a SwyxWare.

Solution A (Firmware 66.84.133.8 or 66.84.133.11 is installed on the phone)

• Perform an update to 66.84.133.12 as follows
  • Open the phone's web portal
  • Log in as administrator
  • Open Setup and select Automatic Deployment
  • Enter http://autop.yealink.com/133_12.cfg in the Server URL entry.
  • Press the button Auto Provision Now
  • After the firmware has been successfully installed, you can upgrade the phone to a general Yealink firmware

Solution B (The phone has firmware 66.84.133.9 or 66.84.133.12 installed and the error is still displayed)

• You must apply for an unlock license at https://license.yealink.com/.
• If you do not have an account to log into the licensing system, please read this FAQ to register: http://support.yealink.com/faq/faqInfo?id=678
• If you already had an account but do not have permission to request a license for the Enreach Group, send an email with your account information to Tommy@yealink.com.

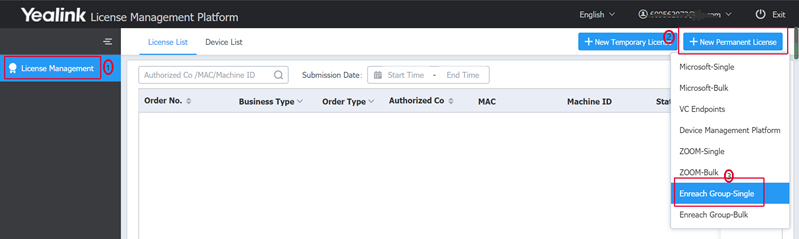

• In the portal, follow these steps to create a license, as shown in the image.You can also use Enreach Group-Bulk to request licenses for multiple phones in one step.
• Enter the requested information in the following window
• Yealink will provide you with the licenses free of charge within 24 hours.

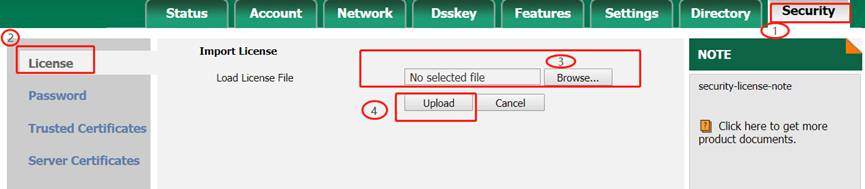

• Once you have received the licenses, upload them into the phone as shown in the picture.

• After the license has been successfully installed, you can upgrade the phone to a general Yealink firmware or e.g. connect the phone to a SwyxWare 11.x in a known way.
